Wire and Cable Flexing Test Apparatus
Testing Equipment

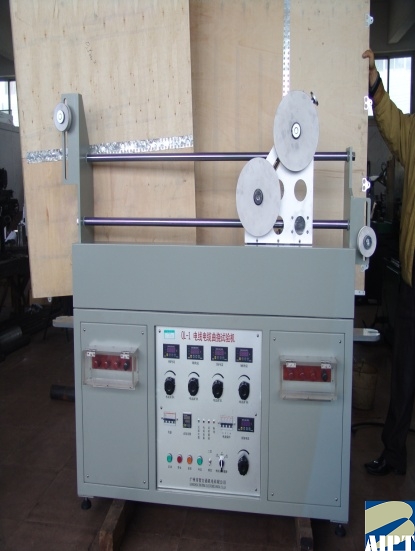

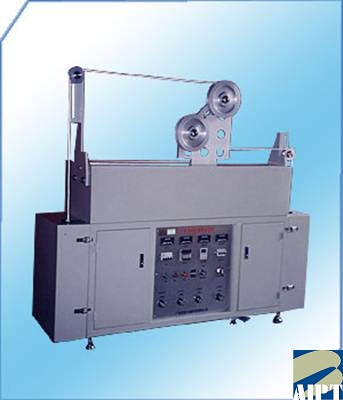

Wire and Cable Flexing Test Apparatus
Designed in accordance with mechanical-strength test requirements for flexible cables, this apparatus is suitable for flexing tests conducted by wire and cable manufacturers and quality-control laboratories.
Product Description
Designed to evaluate the mechanical strength of flexible cables, this apparatus allows the test speed, travel, cycle count, and load conditions to be set for assessing the durability and reliability of wires and cables under repeated flexing.
Key Specifications
- Distributor Product No. ACT12
- Load Current 0.5–25 A
- Test Speed 330 ± 5 mm/s
- Test Travel 1000 ± 20 mm
- Cycle Count 1–999,999
- Pulley Diameters 60, 80, 120, 160, and 200 mm
- Test Weights 1, 1.5, 2, 2.5, 3, 3.5, 4, 6, and 7.5 kg
Evaluate the mechanical strength of flexible cables through flexing tests, helping verify wire and cable durability under repeated bending in service.
