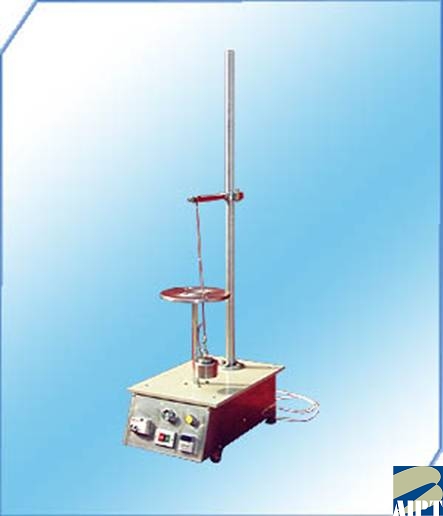

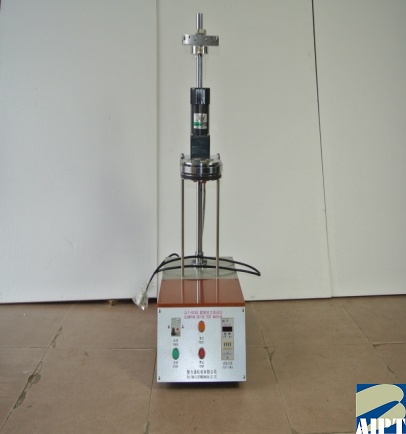

Conductor Damage Test Apparatus
Conductor Damage Test Apparatus
This apparatus is used to assess whether screwless terminals in electrical accessories can withstand the mechanical stresses occurring in normal use. It complies with the relevant standards and the test equipment requirements of VDE0620.
Product Description
The number of operating cycles can be preset. Using a fixed turntable speed and different load-weight configurations, the apparatus simulates the mechanical stresses that screwless terminals may be subjected to during normal use to evaluate the mechanical withstand capability of the conductor and terminal assembly.
Key Specifications
- Distributor Product No. ACT08
- Applicable Standards Complies with relevant standards and VDE0620 test equipment requirements
- Turntable Speed 10 rpm
- Load Weights 0.3 Kg、0.4 Kg、0.7 Kg、0.9 Kg、1.4 Kg、2.0 Kg
Use mechanical stress testing to evaluate the mechanical withstand capability of screwless terminals and conductor assemblies, helping verify the safety and reliability of electrical accessories.
