Glow-Wire Test Apparatus
Testing Equipment

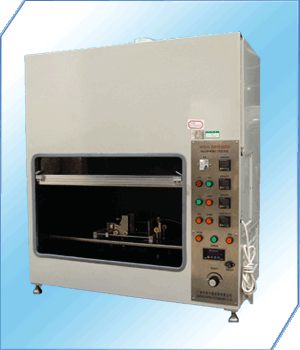

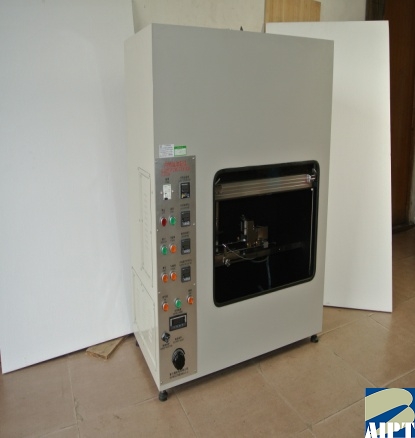

Glow-Wire Test Apparatus
Compliant with IEC 60695, GB 5169.10–11, and GB 4706, this apparatus is designed for fire-hazard testing of electrotechnical and electronic products, household appliances, and their materials.
Product Description
The Glow-Wire Test Apparatus simulates the short-term thermal stress produced by heat and ignition sources, such as glowing elements or overloaded resistors. It helps assess the fire hazard and safety performance of electrotechnical and electronic products, household appliances, and materials when exposed to abnormal heat sources.
Key Specifications
- Distributor Product No. ACT19
- Applicable Standards IEC 60695, GB 5169.10–11, GB 4706
- Glow-Wire Temperature 500–1000 ± 10 °C
- Time Recording Glow-wire application time, time to ignition, and flame extinction time; 0.19–99.9 s
- Specimen Contact Force 1 ± 0.2 N
- Penetration Depth Limit 7 mm
- Test Chamber Volume More than 0.5 m³
Simulate short-term thermal stress through glow-wire testing to help verify material heat resistance and product safety against fire hazards.
