Connector Insertion and Withdrawal Force Tester
Testing Equipment

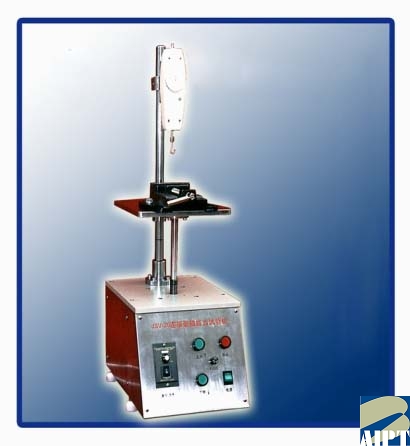

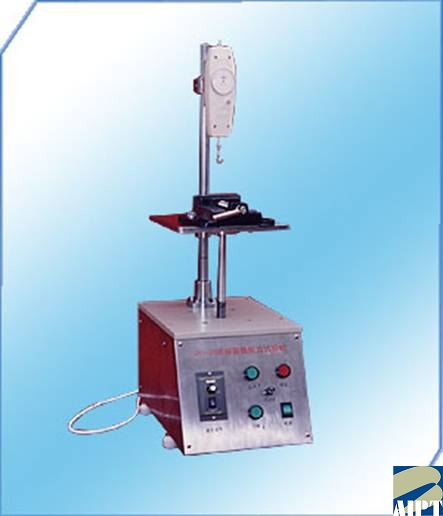

Connector Insertion and Withdrawal Force Tester
Designed and manufactured in accordance with IEC320 standard requirements, this tester can be used with an electronic push-pull force gauge to test connector insertion and withdrawal forces and measure instantaneous and maximum values.
Product Description
This tester is primarily used for connector insertion and withdrawal force testing. Its adjustable test speed and fixed test stroke facilitate evaluation of the forces acting on connectors during insertion and withdrawal, as well as their operational stability.
Key Specifications
- Distributor Product No. ACT06
- Applicable Standards IEC320 standard requirements
- Test Speed 1 mm/S ~ 6 mm/S, adjustable
- Test Stroke 180 mm
- Force Measurement Range 0 ~ 200N
Use insertion and withdrawal force testing to verify connector force performance, helping products meet relevant connector safety and performance testing requirements.
