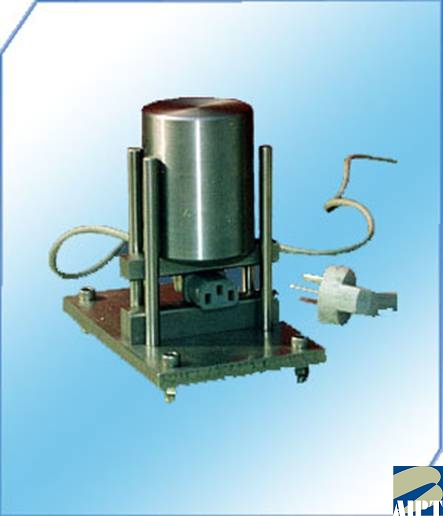

Heat Compression Test Apparatus
Heat Compression Test Apparatus
Manufactured in accordance with GB2099-1996, this apparatus is used to evaluate the resistance to compression of electrical accessories and surface-type mounting boxes when subjected to heat. It must be used with a heating chamber.
Product Description
The Heat Compression Test Apparatus is primarily used to simulate the compressive loading experienced by electrical accessories and surface-type mounting boxes in heated environments, thereby evaluating their resistance to compression and structural stability under high-temperature conditions.
The apparatus consists of a movable compression block, a fixed compression block, a guide-rail bracket, and a weight. It is suitable for use with a heating chamber to conduct tests required by the relevant standards.
Key Specifications
- Distributor Product No. ACT04
- Applicable Standards GB2099-1996
- Companion Equipment For use with a heating chamber
- Compression Block Surface Cylindrical surface with a radius of 25 cm
- Weight 20N
Use compression testing under heated conditions to evaluate resistance to compression, helping verify the safety performance of electrical accessories and mounting boxes in high-temperature environments.
