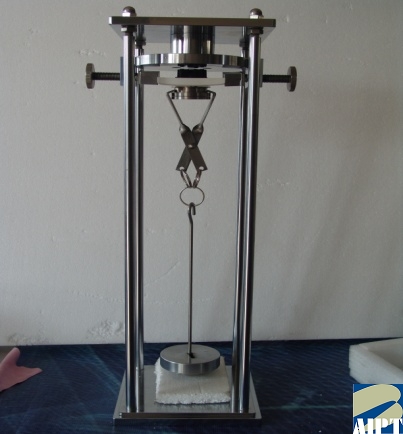

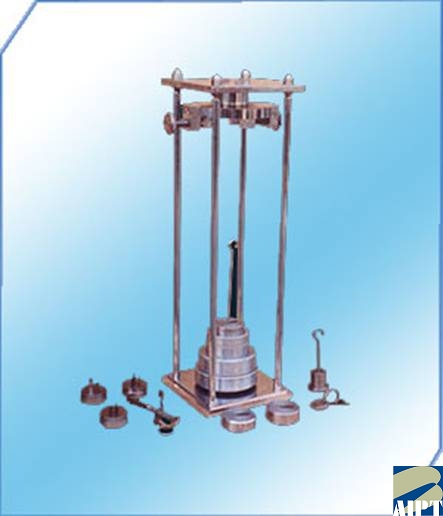

Socket-Outlet Withdrawal Force Test Apparatus
Socket-Outlet Withdrawal Force Test Apparatus
Used to verify whether the maximum force required to withdraw a plug from a socket-outlet and the minimum force required to withdraw a single pin from a socket-contact assembly fall within the ranges specified by the applicable standards.
Product Description
This apparatus is primarily used for withdrawal force testing of plugs, socket-outlets, and socket-contact assemblies, helping verify whether the plug withdrawal force and single-pin withdrawal force fall within the ranges specified by the applicable standards.
Standard accessories include a two-pole 10A standard test plug, three-pole 10A and 16A standard test plugs, one 10A standard test pin, one 16A standard test pin, and one set of weights and a clamping device.
Key Specifications
- Distributor Product No. ACT05
- Original Model No. GC-031
- Applicable Standards Complies with the test equipment requirements of the corresponding clauses of GB2099 and VDE0620
- Customization Support Customizable according to IEC320
Use withdrawal force testing to verify the mating safety of plugs, socket-outlets, and pin assemblies, helping products meet the testing requirements of the relevant standards.
